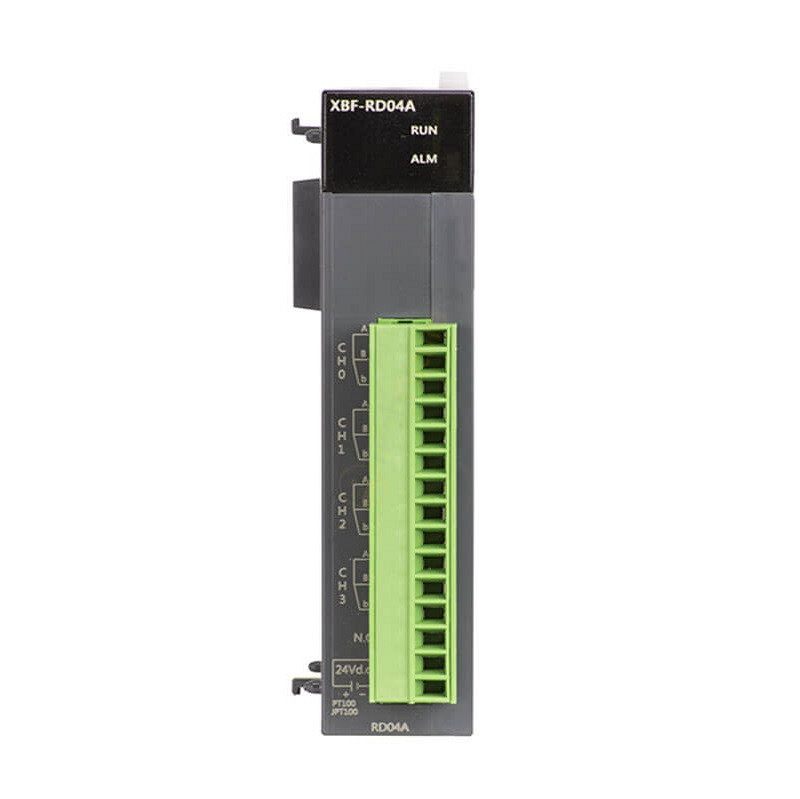

XBF-RD04A 4-kanalni RTD (PT100) temperaturni vhodni modul LS Electric XGB

XBF-RD04A XGB series Expansion Module with 4 Channel Analog input.

Specifications:

No. of input channel: 4 channels

Input sensor type: PT100 JIS C1604-1997; JPT100 JIS C1604-1981 , KS C1603-1991

Temperature input range: PT100 -200 ~ 600℃ ; JPT100 -200 ~ 600℃

Digital output: PT100 -2000 ~ 6000 ; JPT100 -2000 ~ 6000

Scaling display: 0 ~ 4000

Accuracy; Normal temp.(25℃)

Within ±0.3%: Full temp.(0~55℃) Within ±0.5%

Conversion speed: 40ms / channel

Insulation - Channel to Channel: Non-insulation

Terminal to PLC Power: Insulation (Photo-Coupler)

Terminal block: 15-point terminal block

I/O points occupied: Fixed type: 64 points

Wiring method: 3-wire

Max. number of equipment : 7 (when using XBM(C)-DxxxS type) 10 (when using XB(E)C-DxxxH type)

Function - Filtering Digital filter (160 ~ 64000ms)

Alarm: Disconnection detection

Current consumption: inner DC5V 100㎃; external DC24V 100㎃

Weight 63g
