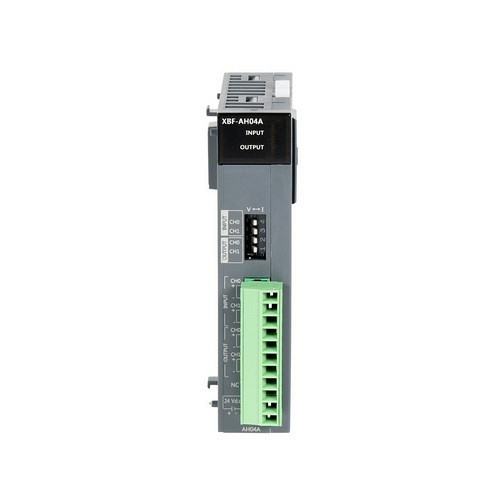

XBF-AH04A 2-kanalni napetostni/tokovni vhodno-izhodni modul LS Electric

XBF-AD04A XGB series Expansion Module with 4 Channel Analog input.

Specifications:

Input

Number of Channels: 2

Internal Current Consumption: 120mA

External Current Consumption: 120mA @ 24VDC/point

Range Voltage: DC 1 to 5V, 0 to 5V, 0 to 10V (Input resistance: 1MΩ min.)

Current: 4 to 20mA, 0 to 20 mA (Input resistance 250Ω)

Signal Resolution: 12 bit

Unsigned Value: 0 to 4000

Signed Value: -2000 to 2000

Precise Value Voltage: 100 to 500 (1-5V), 0 to 500 (0-5V), 0 to 1000 (0-10V)

Current: 400 to 2000 (4-20mA), 0 to 2000 (0-20mA)

Max Resolution Voltage: 1.25mV (1-5VDC, 0-5VDC), 2.5mV (0-10VDC)

Current: 5µA (4-20mA, 0-20mA)

Accuracy: ±0.5% or less

Max Conversion Speed: 1ms/channel

Max Absolute Input Voltage: DC ±15V

Current: DC ±25mA

Output

Number of Channels: 2

Range Voltage: DC 1 to 5V, 0 to 5V, 0 to 10V (Load 2kΩ or more)

Current: 4 to 20mA, 0 to 20 mA (Load 510Ω or less)

Signal Resolution: 12 bit

Unsigned Value: 0 to 4000

Signed Value: -2000 to 2000

Precise Value Voltage: 100 to 500 (1-5V), 0 to 500 (0-5V), 0 to 1000 (0-10V)

Current: 400 to 2000 (4-20mA), 0 to 2000 (0-20mA)

Max Resolution Voltage: 1.25mV (1-5VDC, 0-5VDC), 2.5mV (0-10VDC)

Current: 5µA (4-20mA, 0-20mA)

Accuracy: ±0.5% or less

Max Conversion Speed: 1ms/channel

Max Absolute Input Voltage: DC ±15V

Current: DC ±25mA
