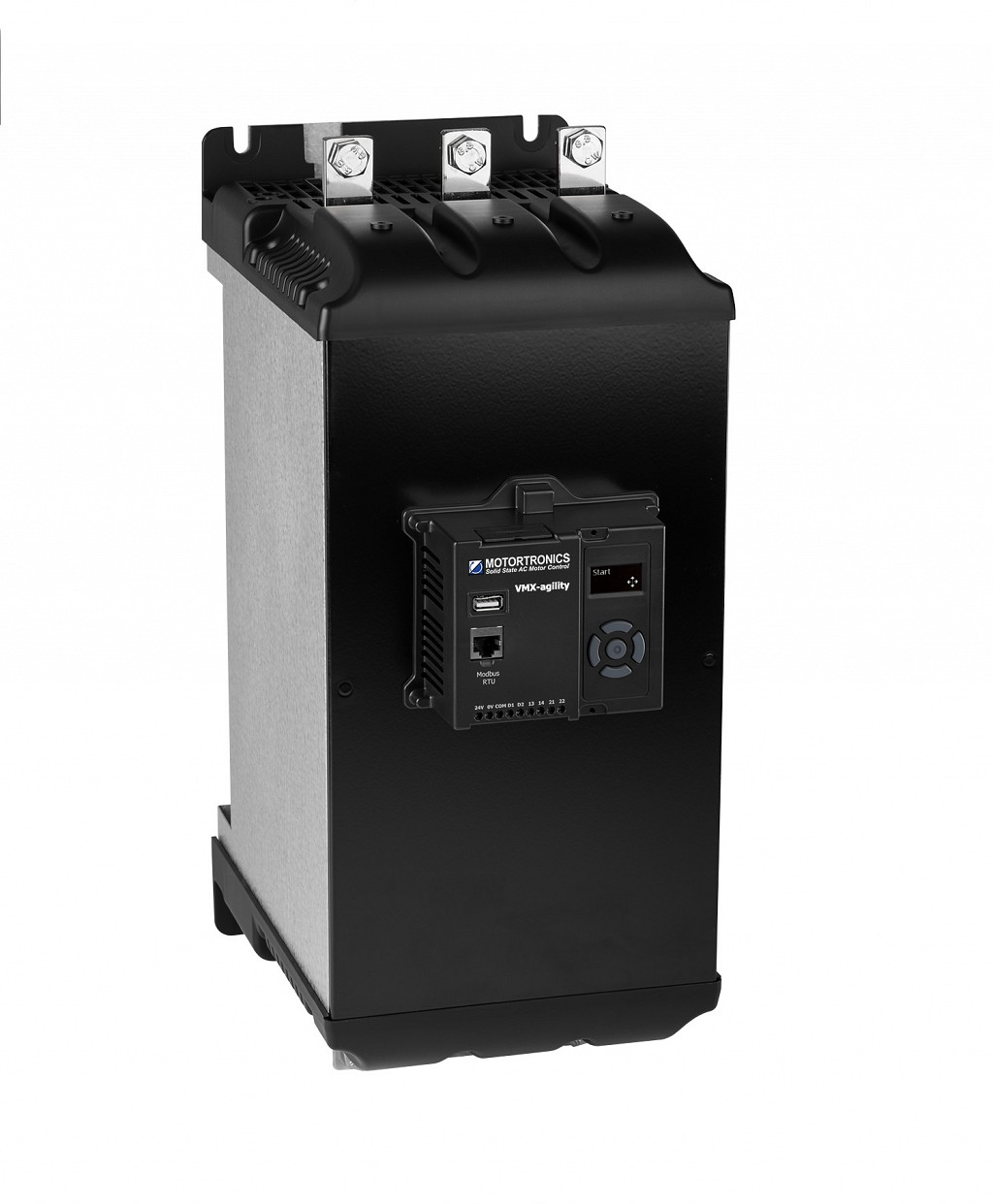

VMX-AGY-303-6-01 agility Soft Starter Motortronics 302A , 160kW (400V) Trip Class 10

Agility Softstarters has been developed to exceed the exacting demands of industrial automation motor control clients. agility™ delivers stable start and stop ramps for smooth, efficient performance. Three standard frame sizes cover all typical applications from 7.5kW to 250kW at 500VAC.

Key Benefits:

- i23 smart application pre-program suite

- 3S Technology

- OLED Display

- USB

- Modbus RTU

- Motor Overload Protection

- Life Event Logging

- Loss Reduction

- Start Delay Feature

- Control Circuit

- Lowers Panel Production Costs

- Soft Stopping

- Fire Mode

- Frequent Number of Starts

- Optional Remote Display Keypad

- Optional Power Supply Unit Module

Other Features:

Inputs: 2 Digital Inputs, 1 Programmable, Standard 24 VDC, With Optional Power Supply 110 to 230 VAC

Outputs: 2 Digital Outputs, 1 Programmable

Overload: Full I²t Motor Overload

Full Logging functionality for use with StarterView: yes

Standards: CE, UL, RCM

Screen: OLED

Sizing Guide:

Manufacturer part number is AGY-303-6-01.
