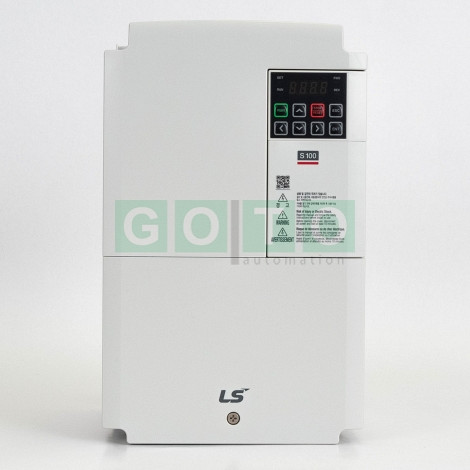

LSLV0110S100-4EOFNS Frequency Inverter S100 11/15kW 400V
Product code:
6031000900
Manufacturer:
LS Electric
Dual rating:
11kW/24A Heavy Duty-150% Overload/1 min;
15kW/30A Normal Duty-120% Overload/1 min;
3 Phase Input,3 Phase Output,
380-480 Volts
control modes: U/f, sensorless vector IM , PM motor control
Output frequency:
0.1 - 400 Hz - U/f
0-120 Hz - IM Sensorless
Built-in Safe Torque Off(STO) (EN60204-1, stop category 0)
LED Keypad
Built-in EMC filter(C3)- Industrial
BRAKE CHOPER BUILD IN
PNP / NPN logic
standard IO - control terminal I/O 5mm pitch
Dual motor parameters
PID controller
RS 485 interface-LS Bus / Modbus RTU
Drive View Software
IP20, 180 x 290 x 163 mm [WxHxD] 10,1 kg
11kW/24A Heavy Duty-150% Overload/1 min;
15kW/30A Normal Duty-120% Overload/1 min;
3 Phase Input,3 Phase Output,
380-480 Volts
control modes: U/f, sensorless vector IM , PM motor control
Output frequency:
0.1 - 400 Hz - U/f
0-120 Hz - IM Sensorless
Built-in Safe Torque Off(STO) (EN60204-1, stop category 0)
LED Keypad
Built-in EMC filter(C3)- Industrial
BRAKE CHOPER BUILD IN
PNP / NPN logic
standard IO - control terminal I/O 5mm pitch
Dual motor parameters
PID controller
RS 485 interface-LS Bus / Modbus RTU
Drive View Software
IP20, 180 x 290 x 163 mm [WxHxD] 10,1 kg
| Built-in Brake Module: |
Yes
|
| Safe Torque Off: |
STO SIL2
|
| Manufacturer: |
LS Electric
|
| Communication: |
Modbus
|
| EMC Filter: |
Built-in Class C3
|
| Protection IP: |
IP20
|
| Control Type: |
V/f Standard
Sensorless Vector
Sensorless Vector
PM Motor Control
|
| Current (A) ND: |
30 A
|
| Current (A) HD: |
24 A
|
| Power (kW) ND: |
15 kW
|
| Power (kW) HD: |
11 kW
|
Frequency Inverters Catalogue LS Electric
Frequency Inverters Catalogue INVT
AC/DC Drives Catalogue Parker
S100 Catalogue
S100 Short Manual
S100 Manual
S100 Manual CANOpen
S100 Manual Ethernet
S100 Manual Extension IO
S100 Manual Ethernet
S100 Manual PROFInet
S100 Manual RAPIEnet
S100 CE Certificate
S100 EC Certificate
