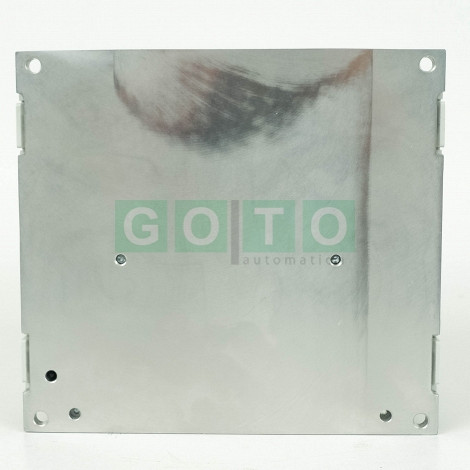

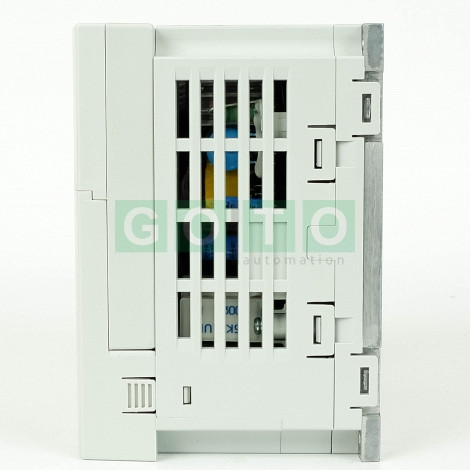

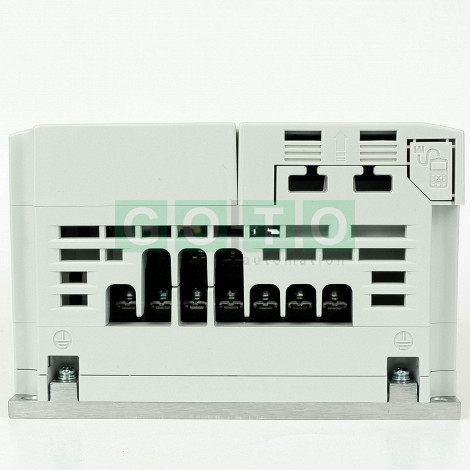

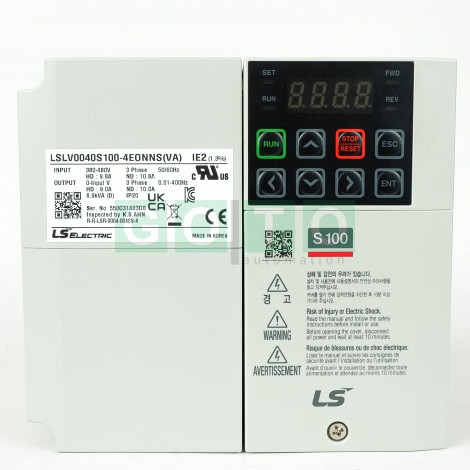

LSLV0040S100-4EONNS Frequency Inverter S100 4kW - 400V COLDPLATE
Product code:
60310226VA
Manufacturer:
LS Electric
4kW/9A Heavy Duty-150% Overload/1 min;
4kW/10A Normal Duty-120% Overload/1 min;
3 Phase Input,3 Phase Output,
380-480 Volts
control modes: U/f, sensorless vector IM , PM motor control
Output frequency:
0.1 - 400 Hz - U/f
0-120 Hz - IM Sensorless
Built-in Safe Torque Off(STO) (EN60204-1, stop category 0)
LED Keypad
No EMC filter
BRAKE CHOPER BUILD IN
PNP / NPN logic
standard IO - control terminal I/O 5mm pitch
Dual motor parameters
PID controller
RS 485 interface-LS Bus / Modbus RTU
Drive View Software
Dimensions:
14x13x9 (WxHxD)
IP20
4kW/10A Normal Duty-120% Overload/1 min;
3 Phase Input,3 Phase Output,
380-480 Volts
control modes: U/f, sensorless vector IM , PM motor control
Output frequency:
0.1 - 400 Hz - U/f
0-120 Hz - IM Sensorless
Built-in Safe Torque Off(STO) (EN60204-1, stop category 0)
LED Keypad
No EMC filter
BRAKE CHOPER BUILD IN
PNP / NPN logic
standard IO - control terminal I/O 5mm pitch
Dual motor parameters
PID controller
RS 485 interface-LS Bus / Modbus RTU
Drive View Software
Dimensions:
14x13x9 (WxHxD)
IP20
| Built-in Brake Module: |
Yes
|
| Safe Torque Off: |
STO SIL2
|
| Manufacturer: |
LS Electric
|
| Communication: |
Modbus
|
| EMC Filter: |
None
|
| Protection IP: |
IP20
|
| Control Type: |
V/f Standard
Sensorless Vector
Sensorless Vector
PM Motor Control
|
| Current (A) ND: |
10 A
|
| Current (A) HD: |
9 A
|
| Power (kW) ND: |
4 kW
|
| Power (kW) HD: |
4 kW
|
Frequency Inverters Catalogue LS Electric
Frequency Inverters Catalogue INVT
AC/DC Drives Catalogue Parker
S100 Catalogue
S100 Short Manual
S100 Manual
S100 Manual CANOpen
S100 Manual Ethernet
S100 Manual Extension IO
S100 Manual Ethernet
S100 Manual PROFInet
S100 Manual RAPIEnet
S100 CE Certificate
S100 EC Certificate
