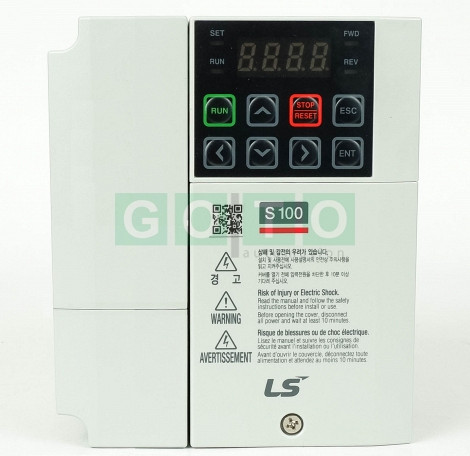

LSLV0015S100-1EONNS Frequency Inverter S100 1,5/2,2kW - 200V

LSLV0015S100-1EONNS Frequency Inverter S100 1,5/2,2kW - 200V

Product code: 6033000300
Manufacturer: LS Electric
Dual rating:
1,5kW/8,0A Heavy Duty-150% Overload/1 min;
2,2kW/9,6A Normal Duty-120% Overload/1 min;

1 Phase Input,3 Phase Output,
200-240 Volts
control modes: U/f, sensorless vector IM , PM motor control
Output frequency:
0.1 - 400 Hz - U/f
0-120 Hz - IM Sensorless

LED Keypad

BRAKE CHOPER BUILD IN
PNP / NPN logic
Dual motor parameters
PID controller
RS 485 interface-LS Bus / Modbus RTU
Drive View Software
standard IO - control terminal I/O 5mm pitch

NO FILTER
IP20, 100 x 128 x 145 mm [WxHxD] ; 1,5kg
To view the price and make a purchase, please to the B2B portal
Do you have additional questions about this product??
Built-in Brake Module:
Yes
Safe Torque Off:
STO SIL2
Manufacturer:
LS Electric
Communication:
Modbus
EMC Filter:
None
Protection IP:
IP20
Control Type:
V/f Standard
Sensorless Vector
Sensorless Vector
PM Motor Control
Current (A) ND:
9.6 A
Current (A) HD:
8 A
Power (kW) ND:
2.2 kW
Power (kW) HD:
1.5 kW
