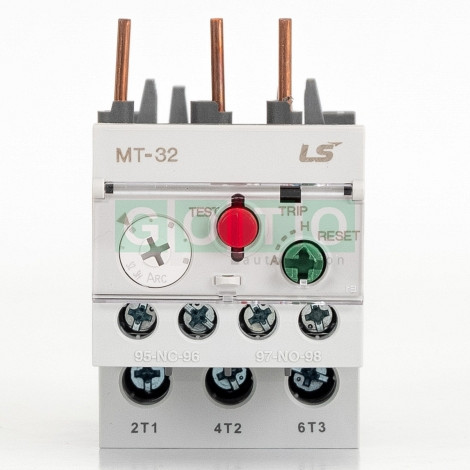

LS Metasol Thermal Overload Relay MT-32 3K-8.5A, 7-10A, Tripping Class 10

LS Metasol Thermal Overload Relay MT-32 3K-8.5A, 7-10A, Tripping Class 10

Product code: 1298001200
Manufacturer: LS Electric
LS Metasol Thermal Overload Relay MT-32 3K
8,5S, 7-10A,
Tripping Class 10
To view the price and make a purchase, please to the B2B portal
Do you have additional questions about this product??

Compact size & easy connection. High Performance and long electrical life. Greater environmental immunity. Sealed structure which improves its safety features.

Key benefits:

- Endure reliability in the system: Type ∥ coordination

- Perfect system with peripheral devices

- No arc exposure via sealed structure

- One-touch connection with Din Rail

- Simple wiring with Adapter, Reversing wire set

- 4-terminal type: Easy wiring of operation coil

- Module type of screw terminal

- Interlock unit with built-auxiliary contacts (2NO built-in)

- Combination with Manual motor starters

- Various accessories

Important note: LSIS Metasol overload relays are only compatible with LSIS Metasol contactors.

Tripping class:
Class 10A
Auxiliary contacts:
1xNO/1xNC
Rated current (A):
8.5 A
Adjustment range (A):
7 – 10 A
Compatible contactors:
MC-9b up to MC-22b, MC-32a, MC-40a
Manufacturer:
LS Electric
