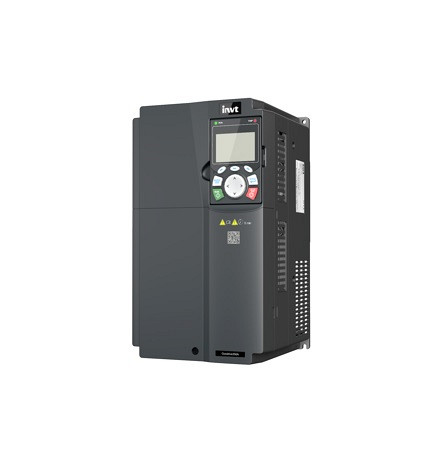

GD350A-022G/030P-4 Frequency Inverter 22kW/30kW,400V, IP20, INVT
Product code:
119700440
Manufacturer:
INVT
G- constant torque load
P- special for fans and pums
22kW/45A Heavy Duty-150% Overload/1 min;
30kW/60A Normal Duty-110% Overload/1 min;
3 Phase Input,3 Phase Output, 380-480 Volts
control modes: U/f, IM motor , PM motor
Output frequency:
0,1 - 400 Hz - U/f / Sensorless / VECTOR CONTROL
Built-in Safe Torque Off(STO)- SIL2
Reference standards:
IEC 61508-1, IEC 61508-2, IEC 61508-3, IEC 61508-4, IEC 62061, ISO
13849-1, and IEC 61800-5-2
LCD Keypad
Built-in EMC filter(C3)- Industrial
BRAKE CHOPER BUILD IN
PNP / NPN logic
standard IO - control terminal I/O 5mm pitch
6 Digital inputs - 2x HDI
2 analog input
1 analog output
2 relay output (NC, NO contact)
RS-485 communication built in
2 transistor output (1-high-speed pulse output)
PID controller
INVT WORSHOP Software
IP20, 200 x 341 x 208 mm [W*H*D]
8,5 kg
P- special for fans and pums
22kW/45A Heavy Duty-150% Overload/1 min;
30kW/60A Normal Duty-110% Overload/1 min;
3 Phase Input,3 Phase Output, 380-480 Volts
control modes: U/f, IM motor , PM motor
Output frequency:
0,1 - 400 Hz - U/f / Sensorless / VECTOR CONTROL
Built-in Safe Torque Off(STO)- SIL2
Reference standards:
IEC 61508-1, IEC 61508-2, IEC 61508-3, IEC 61508-4, IEC 62061, ISO
13849-1, and IEC 61800-5-2
LCD Keypad
Built-in EMC filter(C3)- Industrial
BRAKE CHOPER BUILD IN
PNP / NPN logic
standard IO - control terminal I/O 5mm pitch
6 Digital inputs - 2x HDI
2 analog input
1 analog output
2 relay output (NC, NO contact)
RS-485 communication built in
2 transistor output (1-high-speed pulse output)
PID controller
INVT WORSHOP Software
IP20, 200 x 341 x 208 mm [W*H*D]
8,5 kg
| Safe Torque Off: |
STO SIL2
|
| Manufacturer: |
INVT
|
| Current (A) ND: |
60 A
|
| Current (A) HD: |
45 A
|
| Power (kW) ND: |
30 kW
|
| Power (kW) HD: |
22 kW
|
