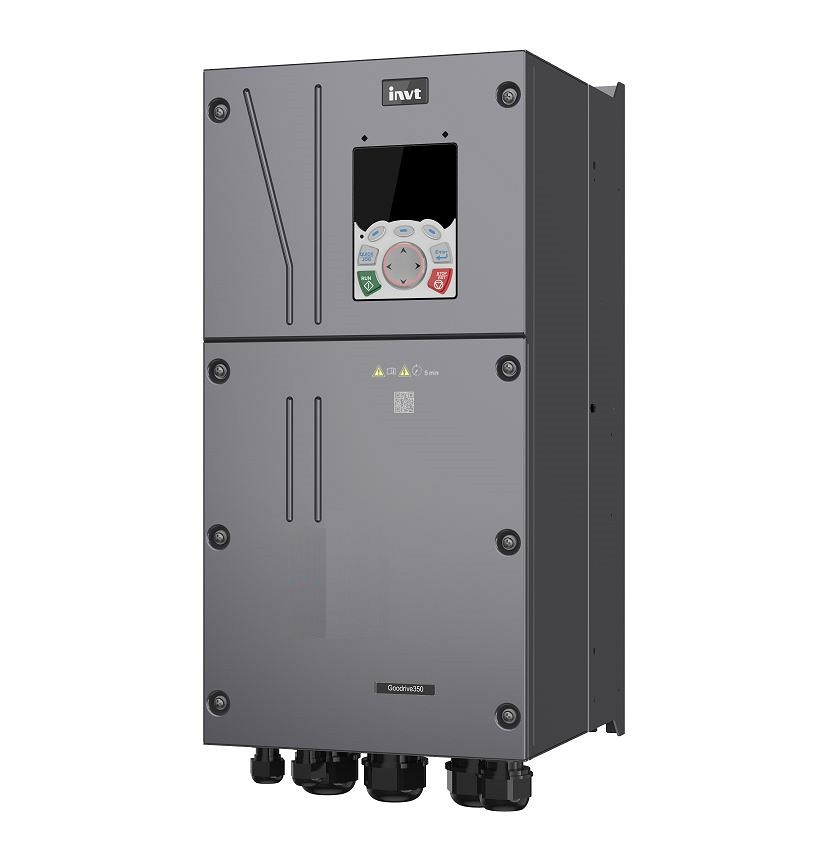

GD350-018G/022P-45-NS Frequency Inverter 18,5/22kW 400V IP55
Product code:
119700300
Manufacturer:
INVT
G- constant torque load
P- special for fans and pums
18,5kW/38A Heavy Duty-150% Overload/1 min;
22kW/45A Normal Duty-110% Overload/1 min;
3 Phase Input,3 Phase Output, 380-480 Volts
control modes: U/f, IM motor , PM motor
Output frequency:
0,1 - 400 Hz - U/f / Sensorless / VECTOR CONTROL
Built-in Safe Torque Off(STO)- SIL2
Reference standards:
IEC 61508-1, IEC 61508-2, IEC 61508-3, IEC 61508-4, IEC 62061, ISO
13849-1, and IEC 61800-5-2
LCD Keypad
Built-in EMC filter(C3)- Industrial
BRAKE CHOPER BUILD IN
PNP / NPN logic
standard IO - control terminal I/O 5mm pitch
6 Digital inputs - 2x HDI
2 analog input
1 analog output
2 relay output (NC, NO contact)
RS-485 communication built in
2 transistor output (1-high-speed pulse output)
PID controller
INVT WORSHOP Software
IP55, 274 x 522 x 246 mm [W*H*D]
10,6kg
P- special for fans and pums
18,5kW/38A Heavy Duty-150% Overload/1 min;
22kW/45A Normal Duty-110% Overload/1 min;
3 Phase Input,3 Phase Output, 380-480 Volts
control modes: U/f, IM motor , PM motor
Output frequency:
0,1 - 400 Hz - U/f / Sensorless / VECTOR CONTROL
Built-in Safe Torque Off(STO)- SIL2
Reference standards:
IEC 61508-1, IEC 61508-2, IEC 61508-3, IEC 61508-4, IEC 62061, ISO
13849-1, and IEC 61800-5-2
LCD Keypad
Built-in EMC filter(C3)- Industrial
BRAKE CHOPER BUILD IN
PNP / NPN logic
standard IO - control terminal I/O 5mm pitch
6 Digital inputs - 2x HDI
2 analog input
1 analog output
2 relay output (NC, NO contact)
RS-485 communication built in
2 transistor output (1-high-speed pulse output)
PID controller
INVT WORSHOP Software
IP55, 274 x 522 x 246 mm [W*H*D]
10,6kg
| Safe Torque Off: |
STO SIL2
|
| Manufacturer: |
INVT
|
| Protection IP: |
IP55
|
| Current (A) ND: |
45 A
|
| Current (A) HD: |
38 A
|
| Power (kW) ND: |
22 kW
|
| Power (kW) HD: |
18.5 kW
|
