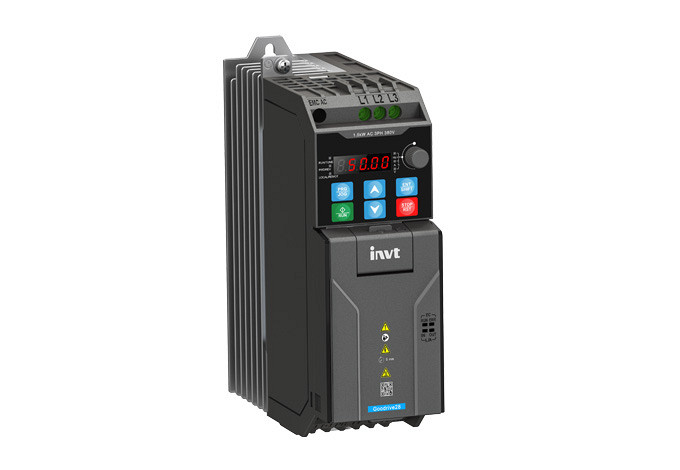

GD28-0R2G-S2 Frequency Inverter 0,2/0,4 kW, 230V, IP20, INVT
Product code:
119701282
Manufacturer:
INVT
Normal duty: 0,2kW/1,5A
Heavy duty: 0,4kW/2A
Overload:
For heavy-load models: 150%/60s, 180%/10s
For light-load models: 110%/60s, 150%/10s
1 Phase Input,3 Phase Output,
200-240 Volts
0-599 Hz
Space voltage vector control, and sensorless vector control (SVC)
Built-in braking unit
Built-in Modbus communication
IP20
EMC C3 Filter (EU models)
The safe torque off (STO) SIL3
IP20
Dimensions (WxHxD):
60x190x155 mm
Weight: 1,23 kg
Heavy duty: 0,4kW/2A
Overload:
For heavy-load models: 150%/60s, 180%/10s
For light-load models: 110%/60s, 150%/10s
1 Phase Input,3 Phase Output,
200-240 Volts
0-599 Hz
Space voltage vector control, and sensorless vector control (SVC)
Built-in braking unit
Built-in Modbus communication
IP20
EMC C3 Filter (EU models)
The safe torque off (STO) SIL3
IP20
Dimensions (WxHxD):
60x190x155 mm
Weight: 1,23 kg
| Stock: |
Out of stock
|
| Built-in Brake Module: |
Yes
|
| Safe Torque Off: |
STO SIL3
|
| Manufacturer: |
INVT
|
| Communication: |
Modbus
|
| EMC Filter: |
Built-in Class C3
|
| Protection IP: |
IP20
|
| Control Type: |
V/f Standard
slip compensation
Sensorless Vector
PM Motor Control
|
| Current (A) ND: |
2 A
|
| Current (A) HD: |
1.5 A
|
| Power (kW) ND: |
0.4 kW
|
| Power (kW) HD: |
0.2 kW
|
