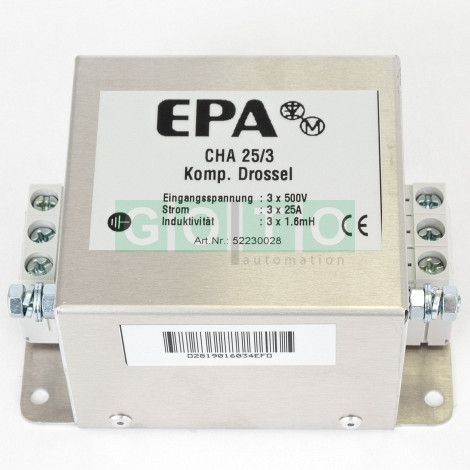

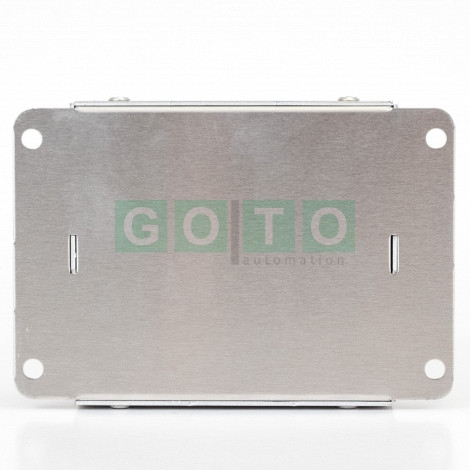

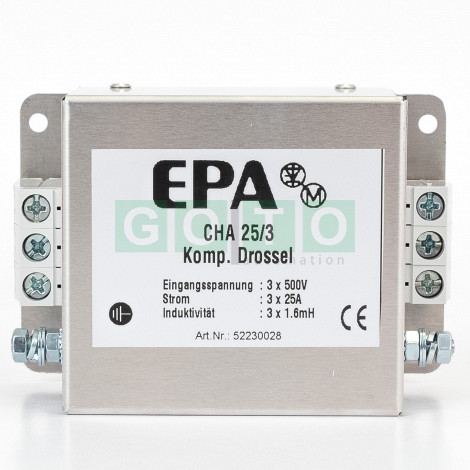

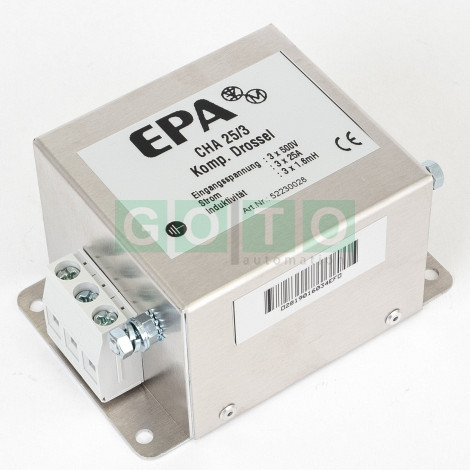

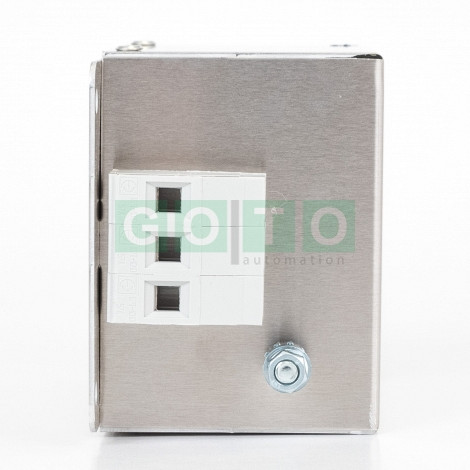

CHA-25-3 EPA Output Choke, Three phase, 25A Acurrent compensated
Product code:
13273
Manufacturer:
EPA
Nominal currect: 25A
Nominal voltage: 500 VAC (± 10 %), 3-phase
Frequency range: DC up to 100 Hz
Nominal current: 10 A up to 200 A @ 50 °C (see table)
Overload capability: 2 times rated current at switch on, then 1.5 times rated current for 1 minute, once per hour
Switching frequency: fmin = 2,5 kHz up to fmax = 16 kHz
Max. length of motor cable up to 500 m
Chassis: Metal case style
Mounting: Chassis mounting with holes
Connection: Screw terminals, dimensions see table, PE (earth) via thread bolt
Degree of protection: IP 20
Class of flammability UL 94V-2 or better
IEC-Climate category 25/085/21 (-25 °C bis +85 °C) | 25/085/21 (-25 °C up to +85 °C)
Approvals: CE
Built: EN 60939, UL 1283, CSA 22.2 No. 8, RoHS
Storage, transport and operation EN 60721-3-1: 1K3, EN 60721-3-2: 2K3, EN 60721-3-3: 3K3
Weight: 0,5 kg
Nominal voltage: 500 VAC (± 10 %), 3-phase
Frequency range: DC up to 100 Hz
Nominal current: 10 A up to 200 A @ 50 °C (see table)
Overload capability: 2 times rated current at switch on, then 1.5 times rated current for 1 minute, once per hour
Switching frequency: fmin = 2,5 kHz up to fmax = 16 kHz
Max. length of motor cable up to 500 m
Chassis: Metal case style
Mounting: Chassis mounting with holes
Connection: Screw terminals, dimensions see table, PE (earth) via thread bolt
Degree of protection: IP 20
Class of flammability UL 94V-2 or better
IEC-Climate category 25/085/21 (-25 °C bis +85 °C) | 25/085/21 (-25 °C up to +85 °C)
Approvals: CE
Built: EN 60939, UL 1283, CSA 22.2 No. 8, RoHS
Storage, transport and operation EN 60721-3-1: 1K3, EN 60721-3-2: 2K3, EN 60721-3-3: 3K3
Weight: 0,5 kg
| AC Chokes: |
25 A
|
| Stock: |
In stock
|
| Manufacturer: |
LS Electric
|
