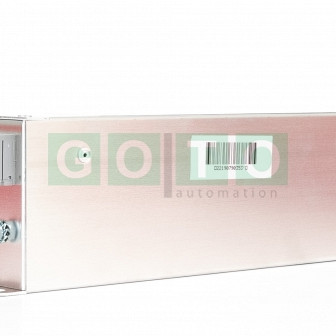

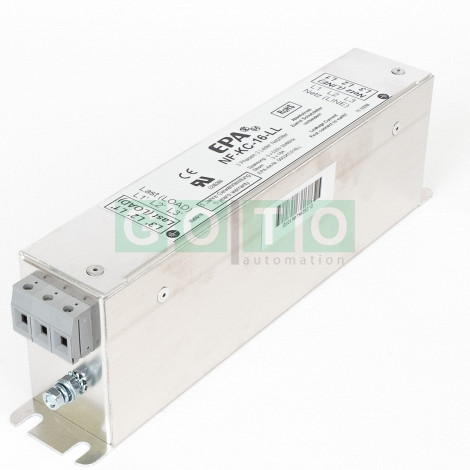

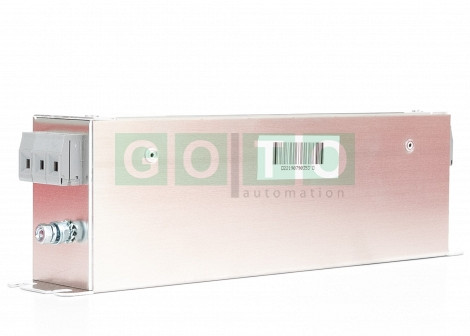

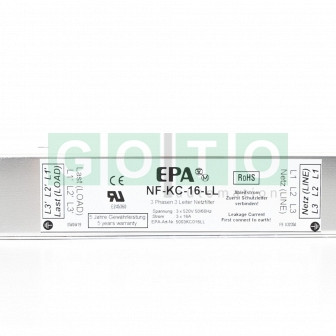

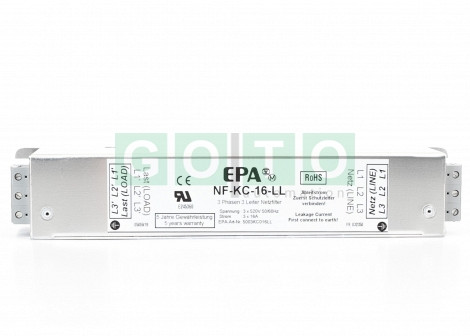

NF-KC-16-LL EPA NF-KC-16-LL COMPACT 3 PHASE FILTER 2STAGE 16A/480VAC LOW LEAKAGE

Nominal voltage 520 VAC (±10 %), 3-phasig | 520 VAC (±10 %), 3-phase
Frequency range 48 bis 63 Hz | 48 up to 63 Hz
Nominal current 7 A bis 180 A @ 50 °C 7 A up to 180 A @ 50 °C (see table)
Overload capability 4-facher Nennstrom beim Einschalten, danach 1,5-facher Nennstrom für 1 Minute, einmal pro Stunde
4 times rated current at switch on, then 1.5 times rated current for 1 minute, once per hour
Chassis Metal case style
Mounting Chassis mounting with holes
Connection Anschlussquerschnitt

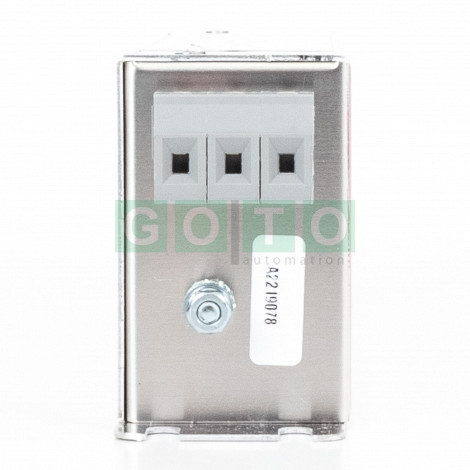

Screw terminals, dimensions see table, PE (earth) via thread bolt
Degree of protection IP 20 | IP 20
Class of flammability UL 94V-2 or better
IEC-Klimakategorie | IEC-Climate category 25/085/21 (-25 °C bis +85 °C) | 25/085/21 (-25 °C up to +85 °C)
Approvals CE, UL | CE, UL
Built according to EN 60939, UL 1283, CSA 22.2 No. 8, RoHS | EN 60939, UL 1283, CSA 22.2 No. 8, RoHS
Storage, transport and operation EN 60721-3-1: 1K3, EN 60721-3-2: 2K3, EN 60721-3-3: 3K3
