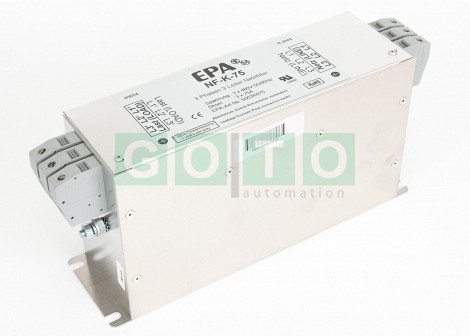

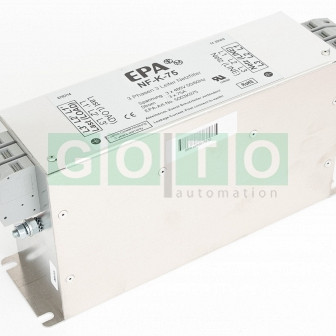

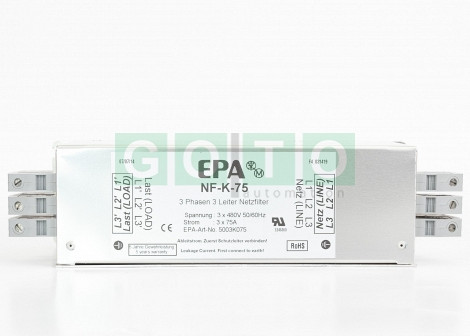

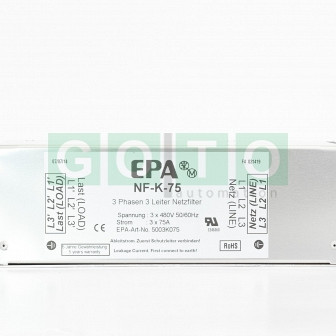

EPA NF-K-75 COMPACT 3 PHASE FILTER 2STAGE 75A/480VAC

Compact mains filter for electrical drives, three phase 75A
Nominal voltage: 520 VAC / 3ph
Nominal frequency : 50/60 Hz
Nominal current: 75A@50°C
Leakage current: <2.0 mA nom.

Customs tariff number: 85045000
Country of origin: GB

Overload capability : 4 times rated current at switch on, then 1.5 times rated current f or 1 minute, once per hour Chassis: Metal housing (bookstyle)
Dimensions: ca. L 328 mm x W 80 mm x H 150 mm
Weight: ca. 3,4 kg
Degree of protection: IP20

Mounting: Chassis mounting with holes
Connection: Screw terminals 50 mm²
PE via earth stud M10
Approvals: CE, UL (E245360)
Built according to: EN 60939-1, UL 1283,
RohS (2011/65/EU)

Operation and storage: according to EN 60068
Class of application: HPF according to DIN 40040
Class of flammability: UL 94V-2 or better
IEC-climate categorie: 25/85/21 (-25°C up to +85°C)
